# Automated Reporting <br> Using R
<div class = "title-img">
<img src = "images/booz cover.jpg" width = 34.5%>
</div>

---

# Table of Contents
.blue[ **The Five Thousand Foot View**]

*How does this technology work and when can I apply it?*

.blue[ **In the Weeds**]

*How do I write the code to create a presentation like this?*

.blue[**Zero Button Automation**]

*How can I make reports run on their own and on a schedule?*

---
class: title-slide
# The Five Thousand Foot View

---
# Intro to Markdown

.blue[ **What is Markdown?**]

Markdown creates a .teal[light-weight, static  webpage] through simplified syntax. We can leverage this to create highly customizable reports with the added benefit of .teal[**automation**] and .teal[**extensibility**].

Automation comes from running chunks of .teal[R code] (or Python, SQL and D3) and the extensibility comes from a custom built .teal[CSS script], which matches the formatting from our powerpoints.

.blue[**When should we automate reports?**]

* Routine reports: if it happens more than twice, automate
* Reports with lots of data
* Few icons and non-data related graphics (things like process flows)

---
# Whats the Business Case

Automation allows .blue[**analytics units**] to focus on .blue[**analytical work**] instead of busy work. By automating the boring stuff, we can increase capacity without increasing workload.

In other words, if you build it right, you can build a report once and have it update itself after that.

.blue[**How I Use This**]

* Every week, I run .teal[five different reports] in the course of .teal[fifteen minutes]
* Each report contains many different things that would need to be updated by hand (one contains .teal[47 different elements] I would need to replace each week)
* Completing these updates would likely take the entire day to complete (if I was working fast)
* Because we can trust the code, the review process is quick

---
# How it works
.center[
<img src = "images/bonesskinmuscle.png" width = 80%>
]

* .blue[**HTML**] provides the structure and static parts of the presentation
* .blue[**R**] provides the brains and muscle, updating the deck with new information
* .blue[**CSS**] provides the styling and spacing

<div class = "footer">
.small[.lightgrey[ The bones, muscle, skin metaphor is a common explantion for web developement, which is essentially what we are doing here!]]
</div>

---
# What do I need to know?

.large[.blue[**Need to Know**]]
* A little bit of R, enough to clean data or produce a plot
* What HTML and CSS are (and more importantly where to find more info on them)
* How markdown works (this is by design very, very simple)

.large[.blue[**Good to Know**]]
* The more R you know, the better!
* How to write CSS classes and HTML
* A plotting library like ggplot2 or plotly

.large[.blue[**Great to Know**]]
* How to run SQL from R for true end to end automation
* A geospatial package like leaflet for mapping
* XML for greater customization with tables

---
# What Comes with this Template

This deck not only serves as an introduction to R Markdown and Xaringan but hopefully as a starting point from which to build your own automated decks. While the ultimate output of Xaringan can be as .blue[**self contained as a PDF**], a zip file with the following will be included:
* A commented .blue[**markdown file**] with all the R code needed to produce this deck
* An extensible (and commented) .blue[**CSS file**] that contains custom classes used to style and position elements
* An organized and simple .blue[**directory structure**] to keep everything organized

While you are welcome to start from scratch, I would recommend simply .blue[**copy pasting**] this folder each time and editting the rmd file to make new decks.

---
class: title-slide
# In the Weeds

---
# Stylizing Your Document

Adding custom spacing and styles is key to creating a professional looking deck.

All styling is handled by CSS classes. This is the same technology that powers the look and feel of webpages. So if you could do it on a webpage, you can do it here (mostly).

In the styling folder, you will find custom.css which creates

Lets walk through an example:
.pull-left[
```{}
/* In your CSS File */
.blue{
  color: #305496;
}

.large {
  font-size: 110%;
  }

```

```{}
/* In your Markdown File */
.blue[
  .large[
This is how you apply color
and size to some text.
  ]]
```
]

.pull-right[

.blue[
  .large[
This is how you apply color
and size to some text.
  ]]

  ]

---
# Positioning an Item

Admittedly, powerpoint is much better at allowing users to quickly and easily fine tune the position of an element on a slide.

With markdown, you can achieve all the same effects, but it will likely involve some trial and error.

Lets say we want something pulled to the right and centered horizontally and veritically.

.pull-left[

```{}
/* In your Markdown File */

.pull-right[
  .center[
  <div style= 'margin-top: 45%'>
    I am centered
  </div>
]]

```
]

.pull-right[
  .center[
  <div style= 'margin-top: 45%'>
    I am centered
  </div>
]]

---
# Creating Tables

.large[.blue[**Tables can be used for data or positioning**]]

.more-left[

```r
library(knitr)
library(kableExtra)
data = read.csv("data/states.csv")[,1:4]

kable(head(data),
        format.args = list(big.mark = ","))%>%
  kable_styling(font_size = 12)
```

```r
# creating a function that outputs html code
html_print = function(html) {
    structure(html, class='knit_asis')
}

# creating a custom table
html_print(
  paste0("
<div>
<span class = 'verylarge'>
<span style = 'color:green'> \u25B2 </span>",
      data$Change[49],"%</span>
<table align = 'center'>
  <tr class = 'title_row', style = 'text-align:center'>
    <th>", format(data[49,3], big.mark = ","), "</th>
    <th><span style = 'color: #0e6c91; font-weight: 900'>
    \u25B6 </span></th>
    <th>", format(data[49,2], big.mark = ","),  "</th>
  </tr>
  <tr class = 'note_row'>
    <th style = 'text-align:center'> Pop. 2010 </th>
    <th> </th>
    <th style = 'text-align:center'> Pop. 2018 </th>
  </tr>
</table>
</div>
"))
```
]

.less-right[
<table class="table" style="font-size: 12px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> Name </th>
   <th style="text-align:right;"> Population.2018 </th>
   <th style="text-align:right;"> Population.2010 </th>
   <th style="text-align:right;"> Change </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> California </td>
   <td style="text-align:right;"> 39,557,045 </td>
   <td style="text-align:right;"> 37,254,523 </td>
   <td style="text-align:right;"> 6.2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Texas </td>
   <td style="text-align:right;"> 28,701,845 </td>
   <td style="text-align:right;"> 25,145,561 </td>
   <td style="text-align:right;"> 14.1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Florida </td>
   <td style="text-align:right;"> 21,299,325 </td>
   <td style="text-align:right;"> 18,801,310 </td>
   <td style="text-align:right;"> 13.3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> New York </td>
   <td style="text-align:right;"> 19,542,209 </td>
   <td style="text-align:right;"> 19,378,102 </td>
   <td style="text-align:right;"> 0.8 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Pennsylvania </td>
   <td style="text-align:right;"> 12,807,060 </td>
   <td style="text-align:right;"> 12,702,379 </td>
   <td style="text-align:right;"> 0.8 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Illinois </td>
   <td style="text-align:right;"> 12,741,080 </td>
   <td style="text-align:right;"> 12,830,632 </td>
   <td style="text-align:right;"> -0.7 </td>
  </tr>
</tbody>
</table>
<br>
<br>
.center[
<div>
.lightgrey[.medium[District of Columbia]]<br>

]

---
# Creating Plots

.blue[**Creating plots is super easy with ggplot2**]

* Chunks of code are written (see on the left)
* Those chunks are evaulated and the results returned (on the right)
* As data updates, the plots will update as well!

.pull-left[

```r
library(ggplot2)
data = USArrests%>%
  mutate(
    State = state.abb[match(row.names(USArrests),
                            state.name)],
    labels = paste0(State, ": ", UrbanPop)
      )

data$id = seq(1:50) # creating an id
angle <-  90 - 360 * (data$id-0.5) /50
data$hjust<-ifelse( angle < -90, 1, 0)
data$angle<-ifelse(angle < -90, angle+180, angle)

# Make the plot
ggplot(data, aes(x=as.factor(id), y=UrbanPop)) +
  geom_bar(stat="identity", fill="#096a90") +
  ylim(-100,120) +
  theme_minimal() +
  theme(
    axis.text = element_blank(),
    axis.title = element_blank(),
    panel.grid = element_blank(),
    plot.margin = unit(rep(-2,4), "cm")
  ) +
  coord_polar(start = 0)+
  geom_text(data=data,
        aes(x=id, y=UrbanPop+10,
            label=labels, hjust=hjust),
        color="black", fontface="bold",
        alpha=0.6, size=2.5,
        angle= data$angle,
        inherit.aes = FALSE )
```
]
.pull-right[
![](template_files/figure-html/plot-label-out-1.png)
]

<div class = "footer">
.small[.lightgrey[Tutorial for circular barplot can be found [here](https://www.r-graph-gallery.com/296-add-labels-to-circular-barplot.html)]]
</div>

---

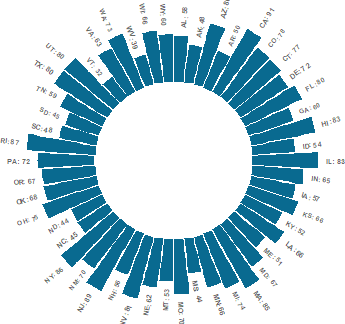

# Pulling It All Together

.blue[***Creating professional slides that automatically update is easy with R Markdown***]
.pull-left[
![](template_files/figure-html/unnamed-chunk-1-1.png)
]

.pull-right[
<br>
.center[
<div>
.lightgrey[.medium[District of Columbia]]<br>

<div>
<span class = 'verylarge'>
<span style = 'color:green'> ▲ </span>16.7%</span>
<table align = 'center'>
  <tr class = 'title_row', style = 'text-align:center'>
    <th>601,723</th>
    <th><span style = 'color: #0e6c91; font-weight: 900'>
    ▶ </span></th>
    <th>702,455</th>
  </tr>
  <tr class = 'note_row'>
    <th style = 'text-align:center'> Pop. 2010 </th>
    <th> </th>
    <th style = 'text-align:center'> Pop. 2018 </th>
  </tr>
</table>
</div>
</div>
]
<br>
<br>
<table class="table" style="font-size: 12px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;"> Name </th>
   <th style="text-align:right;"> Population.2018 </th>
   <th style="text-align:right;"> Population.2010 </th>
   <th style="text-align:right;"> Change </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> California </td>
   <td style="text-align:right;"> 39,557,045 </td>
   <td style="text-align:right;"> 37,254,523 </td>
   <td style="text-align:right;"> 6.2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Texas </td>
   <td style="text-align:right;"> 28,701,845 </td>
   <td style="text-align:right;"> 25,145,561 </td>
   <td style="text-align:right;"> 14.1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Florida </td>
   <td style="text-align:right;"> 21,299,325 </td>
   <td style="text-align:right;"> 18,801,310 </td>
   <td style="text-align:right;"> 13.3 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> New York </td>
   <td style="text-align:right;"> 19,542,209 </td>
   <td style="text-align:right;"> 19,378,102 </td>
   <td style="text-align:right;"> 0.8 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Pennsylvania </td>
   <td style="text-align:right;"> 12,807,060 </td>
   <td style="text-align:right;"> 12,702,379 </td>
   <td style="text-align:right;"> 0.8 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Illinois </td>
   <td style="text-align:right;"> 12,741,080 </td>
   <td style="text-align:right;"> 12,830,632 </td>
   <td style="text-align:right;"> -0.7 </td>
  </tr>
</tbody>
</table>

]
---
class: title-slide
# Zero Button Automation

---
# What is Zero Button Automation

So far what we have shown will still require the analyst to open up R Studio and run the report. What if we could have the report run .blue[**automatically**] on a schedule so that we only need to look at the results and email it?

Luckily we can with .blue[**pagedown**] and .blue[**windows schedular**]!
<br>
<br>
<div style = "background-color: #f8f8f8; padding: 20px">

.blue[**Bonus Automation!**]<br><br>

Because deck building is most likely the most complicated process to automate, this presentation is geared towards that. However, within the provided zip folder, in .blue["automation examples"], I've included quick examples on how to automate the following:

<ul>
<li> Excel Workbooks </li>
<li> Markdown One Pagers </li>
<li> Tabbed Markdown Documents </li>
</ul>
</div>

---
# Pagedown or Printing Directly to a PDF

The biggest compliant I have with .blue[**xarigan**] is that you cannot really email it. Instead you have to open up the html file and print it out as a PDF.

Fortunately, the creator of xarigan also created a companion package called .blue[**pagedown**] which runs your markdown file, opens the resulting html file, and using a headless (or invisible) chrome brower, print it to a pdf.

Included in this template is a file called ".blue[**automation_helper.R**]" Let's see what this looks like:

```r
## automatic printing
setwd("PATH TO MARKDOWN FILE")
library(pagedown)

Sys.setenv(RSTUDIO_PANDOC = "C:/Program Files/RStudio/bin/pandoc")

chrome_print("template.Rmd",
             browser = "PATH TO CHROME BROWSER",
             output = paste0("outputs/template_", Sys.Date(), ".pdf"))
```
---
# Editing automation_helper.R
There are a couple minor tweaks, all having to do with directories, you will need to make here:

* You will need to set the working directory to wherever your .rmd file is

* You will need to find an up to date version of pandoc. See the code below:

```r
# This command will show you where pandoc is
Sys.getenv("RSTUDIO_PANDOC")

# And this command will make sure that version is used
Sys.setenv(RSTUDIO_PANDOC = "FILE LOCATION GOES HERE")

# So, in case this isnt clear, use Sys.getenv() to get the LOCATION of pandoc
# and paste that into the second command like so:
Sys.setenv(RSTUDIO_PANDOC = "C:/Program Files/RStudio/bin/pandoc")
```

* You will need to point the brower argument to the .exe for chrome

For me, chrome was listed as a program in the local folder within AppData. This is a hidden folder, so I will put an example path below:

```r
C:\Users\<<USER NAME>>\AppData\Local\Google\Chrome\Application\chrome.exe
```
---
# Windows Schedular

.blue[**From One Button to Zero Button**]
Now that we have created a normal R Script that can create our deck, we can schedule it to run using .blue[**Windows Schedular**]. Windows Schedular is an accessory program that comes with most installations of Windows.

* Type in "Windows Schedular" into the search bar
* Click "Action" > "Create Task"

.center[
<img src = "images/task_schedular.PNG" width = 90%>
]
---
# Creating an Action
<div>
.pull-left[
* Under the .blue["Actions"] tab, put the path to .blue["Rscript.exe"] (in quotes) from the bin folder of your RStudio installation in the .blue["Program Script"] field

* Under the .blue["Add arguments (optional):"], add the path to your R Script in quotes and click .blue["OK"]

* Finally, under the .blue["Triggers"] tab, click the days and time you would like your script to be run!
]

.pull-right[
.center[
<img src = "images/action.PNG" width = 90%>
]
]
</div>
<div style = "position: absolute; bottom: 12%; margin-right: 80px">
The paths for both the Rscript.exe and for the automation_helper.R can be found in the "automation_examples" folder within the provided zip document.
</div>
---
# Resources
.medium[
***.blue[The Core Technology]***
* [R Markdown](https://bookdown.org/yihui/rmarkdown/) - knitting HTML, CSS and R together
* [Xaringan](https://github.com/yihui/xaringan/wiki) - R wrapper for remark.js deck framework
* [CSS](https://developer.mozilla.org/en-US/docs/Web/CSS) - the "skin" of the deck
* [HTML](https://developer.mozilla.org/en-US/docs/Web/HTML) - the "bones" of the deck

***.blue[Loading Data into R]***
* [openxlsx](https://rdrr.io/cran/openxlsx/#vignettes) - loading (and writing) data from .xlsx documents
* [RODBC](https://www.rdocumentation.org/packages/RODBC/versions/1.3-16) - creating a connection to a SQL server
* [jsonlite](https://cran.r-project.org/web/packages/jsonlite/vignettes/json-aaquickstart.html) - querying json objects in R

***.blue[Cleaning Data in R]***
* [tidyverse](https://rstudio.com/resources/cheatsheets/) - all you need to know to manipulate data
* [data.table](https://cran.r-project.org/web/packages/data.table/vignettes/datatable-intro.html) - a quicker way to manipulate data

***.blue[Presenting Data in R]***
* [kableExtra](https://cran.r-project.org/web/packages/kableExtra/vignettes/awesome_table_in_html.html) - generating and stylizing tables
* [ggplot2](http://www.cookbook-r.com/Graphs/) - creating plots in R
]
